Sea-Doo Drive Shaft Information
The following drive shaft specification chart will assist in identifying various Sea-Doo drive shafts based on simple measurements.

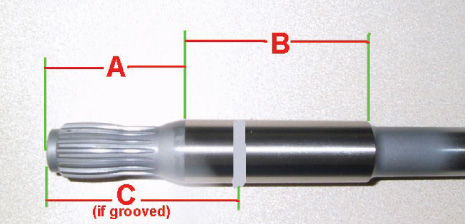

All dimensions should be made from the power take off end. If the driveshaft is of newer design and uses a seal with a groove, measure from the middle of groove. Those newer drive shafts with a flare on the end are noted in the chart.
| PART NO. | LENGTH (mm) | A(mm) | B(mm) | GROOVED (Y/N) | C(mm) | FLARED | FITS MODEL(S) |
| 272000009 | 52.1 | ? | ? | Y | 143 | ? | 95-97 HX/97 XP |
| 272000020 | 43 | 50 | 61 | N | - | N | 89-94 MOST MODELS (EXCLUDING EXPLORER) |
| 272000021 | 53.3 | 72 | 66 | N | - | Y | 95 XP800 |
| 272000037 | 57.9 | 48 | 64 | N | - | Y | 94 EXPLORER |
| 272000044 | 57.9 | 48 | 64 | N | - | Y | 95 EXPLORER |
| 272000055 | 43 | 50 | 61 | N | - | Y | 95 GTS GTX SPI SPX Sportster Speedster |
| 272000062 | 50.6 | 45 | 65 | N | - | Y | 95 XP (717) |
| 272000065 | 43 | 50 | 61 | N | - | N | 95 SP |
| 272000072 | 46.5 | 73 | 58 | Y | 95 | Y | 96 CHALLENGER |
| 272000073 | 43 | 45 | 65 | Y | 50 | Y | 96 GTI SPI SP SPX /97 SP/96-00 GTS/01 GTS (5551) |
| 272000077 | 53.3 | ?? | ?? | Y | 78 | ?? | 96 GTX |
| 272000096 | 45.8 | 72 | 65 | Y | 78 | Y | 96 XP GSX/97 GSI GSX/99 GSX RFI/97-99 GS SPX/00-01 GS GSX RFI/01 GTS/01-04 GTI |
| 272000103 | ?? | ?? | ?? | Y | ?? | ?? | 98 GSX LTD (5625 - 97 PRODUCTION) |
| 272000127 | 53.3 | 63 | 74 | Y | 78 | Y | 97 GTX/97-00 GTI/98-00 GTX RFI/01 GTI (5552)/01-02 GTX RFI |
| 272000141 | ? | ? | ? | Y | - | ? | 98 XP LTD |
| 272000148 | ?? | ?? | ?? | N | - | ?? | 98 GSX LTD (WITH OLD STYLE SEAL CARR) |
| 272000150 | 52.1 | 54 | 134 | Y | 143 | Y | 99-04 XP (Includes DI) (SMALLER DIA. FOR BUSHING) |
| 272000151 | 45 | 63 | 66 | Y | ?? | Y | 97 GSX /98 GSX LTD (NEW STYLE SEAL )/99 GSX LTD/00-03 RX (RX DI) |
| 272000160 | 52.4 | 50 | 61 | Y | 84 | Y | 98 GTX LTD (NEW STYLE SEAL CARR) /99 GTX LTD/00-03 GTX (GTX DI)/00-01 LRV |
| 272000901 | ? | ? | ? | N | - | ?? | 98 GTX LTD (OLDER STYLE SEAL CARRIER) |
