SeaDoo Terminal Removal

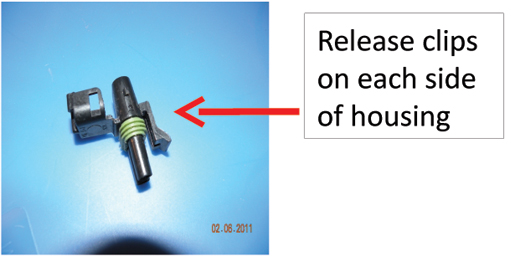

1. Start by opening the rear section of the housing

/images/pshset3/SeaDoo-Terminal-Removal1.jpg

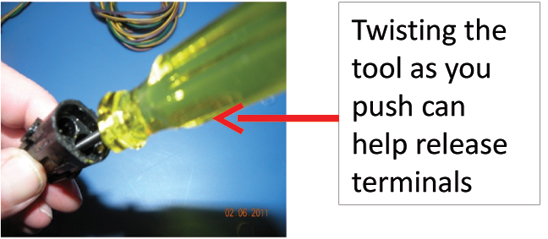

2. Insert the terminal removal tool down over the terminal all the way until it won’t go any farther.

/images/pshset3/SeaDoo-Terminal-Removal2.jpg

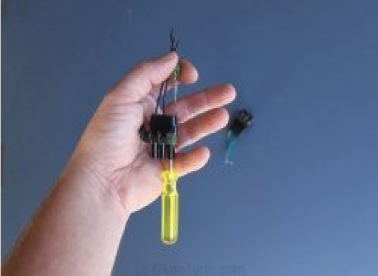

3. With the terminal removal tool held firmly all the way into the housing, pull the terminal and wire combo out the opposite side.

/images/pshset3/SeaDoo-Terminal-Removal3.jpg

To reassemble, push terminals into housing by hand (you will feel a click) and close rear section of the housing
